SMTAV 30x POE NDI PTZ Camera and 1PCS PTZ Camera Controller

SMTAV Church Broadcasting 3PCS SMTAV 30x POE NDI PTZ Camera and 1PCS PTZ Camera Controller support ONVIF.

Camera package includes: camera,adapter, power cord, remote control, Visca control cable and instruction manual

Controller includes: controller, adapter and instruction manual

Camera

Features:

Image Sensor
Panasonic 1/2.7”, 2.07 million effective pixels, HD CMOS sensor
TAMRON high quality telephoto lens supporting 30X optical zoom and optional 8X digital zoom
Full HD 1920x1080p resolution up to 60 frames per second
2D & 3D noise reduction with our latest “low noise CMOS sensor”
0.05 Lux @ F1.8 AGC On
Wide angle 60.7° horizontal field of view
Dynamic Range Control (DRC) for higher image quality and detail across simultaneously well lit and shadowed scenes.
Image Freeze to temporarily pause the video while calling presets (so viewers won’t see camera movement)
High SNR (signal to noise ratio) of the CMOS sensor (≥55dB), combined with 2D & 3D noise reduction algorithms, effectively reduces noise, even under low illumination conditions.

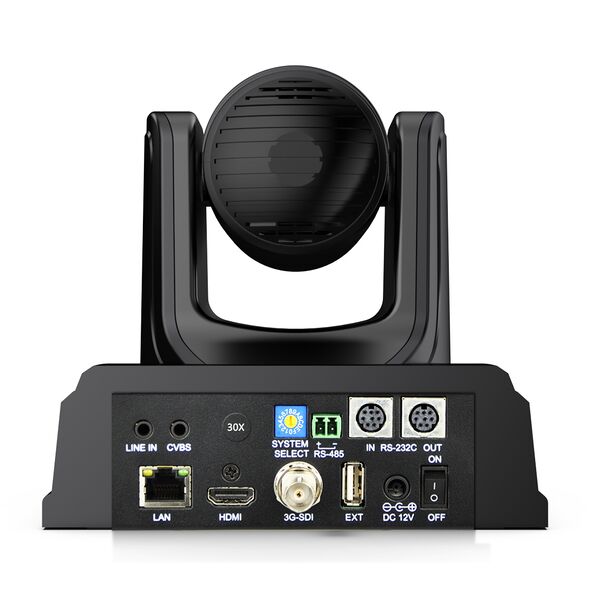

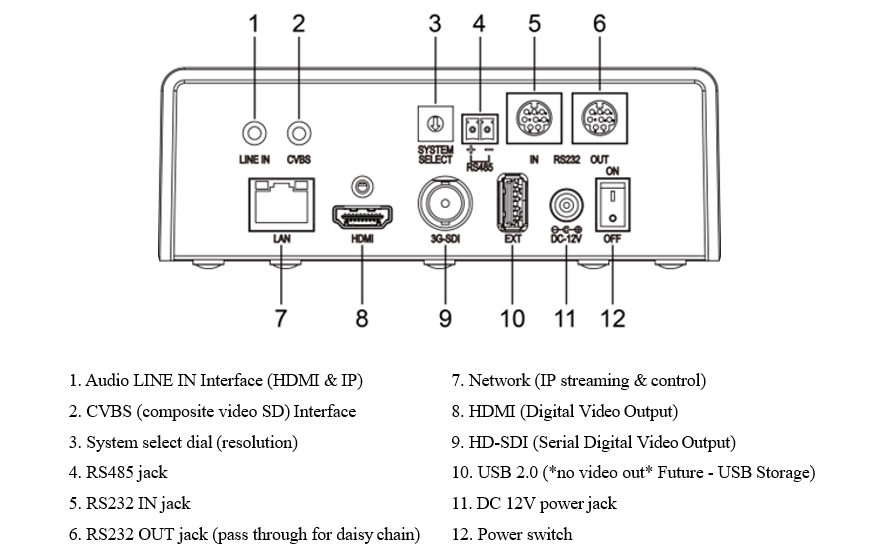

Video Outputs:

Simultaneous IP network streaming, 3G-SDI, and HDMI video outputs.
3G-SDI High Definition video output up to 60 frames per second
HDMI 1.3 High efinition video output up to 60 frames per second
RTSP, RTMP, & RTMPS streaming using H.264, H.265, & MJPEG
Line level audio embedding over IP network stream & HDMI. Uses AAC audio encoding for better sound quality and lower bandwidth usage.
Support for ultra-high FPS mode 1280x720p @ 120 frames per second over IP network stream.
Supports non-simultaneous CVBS (composite video) output via 3.5mm connector (480i or 576i)

Sensor	1/2.7", CMOS, Effective Pixel: 2.07M
Scanning Mode	Progressive
Lense	30x, f4.42mm ~ 132.6mm F1.8~F2.8
Minimallumination	0.05 Lux (@F1.8, AGCON)
Digital Zoom	8x
Shutter	1/30s ~ 1/10000s
White Balance	Auto, 3000K/Indoor, 4000K,5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation	Support
Digital Noise Reduction	2D & 3D Digital Noise Reduction
Video S/N	≥55dB
Horizontal Angle of View	3.36° ~ 60.7°
Vertical Angle of View	1.89° ~ 34.1°
Horizontal Rotation Range	±170°
Vertical Rotation Range	-30° ~ +90°
Pan Speed Range	1.7°/s ~ 100°/s
Titlt Spee Range	1.7°/s ~ 69.9°/s
Image Flip	Support
Image Mirror	Support
Image Freeze	Support
PoE	Support (802.3af)
Local Storage	Support
Number of Presets	255
Preset Accuracy	0.1°
Input Voltage	DC 12V / PoE (802.3af)
Current Consumtion	1.0A (max)
Operating Temperature	-10°C ~ 40°C
Storage Temperature	-40°C ~ 60°C
Operating Humidity	10% ~ 80%
Power Consumtion	12W (max)
MTBF	>30000h
Size	142mm W x 169mm D x 164mm H (168mmH with max tilt)
Camera Weight	1.35kg

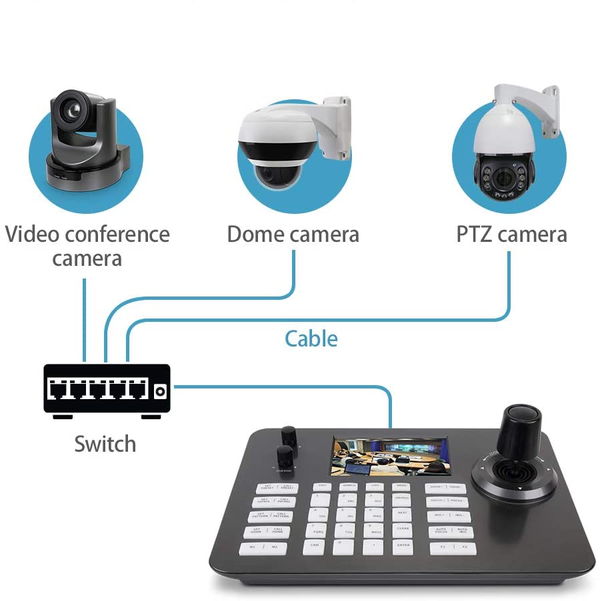

Features:

Support network control with independent IP address.
Support ONVIF
5 inch industrial LCD screen, resolution 800*480, image decoding, real-time monitoring.
Support 4D joystick control ptz function
Support preset patrol pattern and AB scan
Support IE web setting
Support custom function buttons, add shortcut function (customized)
Support Knob for zoom and control speed
Support POE

Chip	HIS3536DV100
OS	Linux
Decoding	h.265, h.264
Resolution	max 1080p for 1 channel: 1920 x 1080 @ 30fps
Protocol	Onvif
Joystick	4D
Output	RS422 (Reserved), RS232 (Development Port), RJ45
Accessories	Knob, Silicone button
Beep	On / Off
Screen	TFT LCD 800 x 480
Power Consumption	≤5W
Power	DC12V-2A
Work Temperature	-10°C ~ 55°C
Work Humidity	20% ~ 80% Frostless
Storage Temperature	-10°C ~ 60°C
Storage Humidity	0% ~ 90% Frostless
