Millenium MCT-30
Cable Tester with divisible housing for testing long cables easily. Power supply: 2x 9V battery
Suitable for:
- 3-Pin and 5-pin XLR connector
- 6.3 mm mono / stereo jack
- 3.5 mm mini jack
- BNC plug
- RJ45 plug
- RJ11 plug
- RCA plug
- 3-Pin and 5-pin DIN MIDI plugs

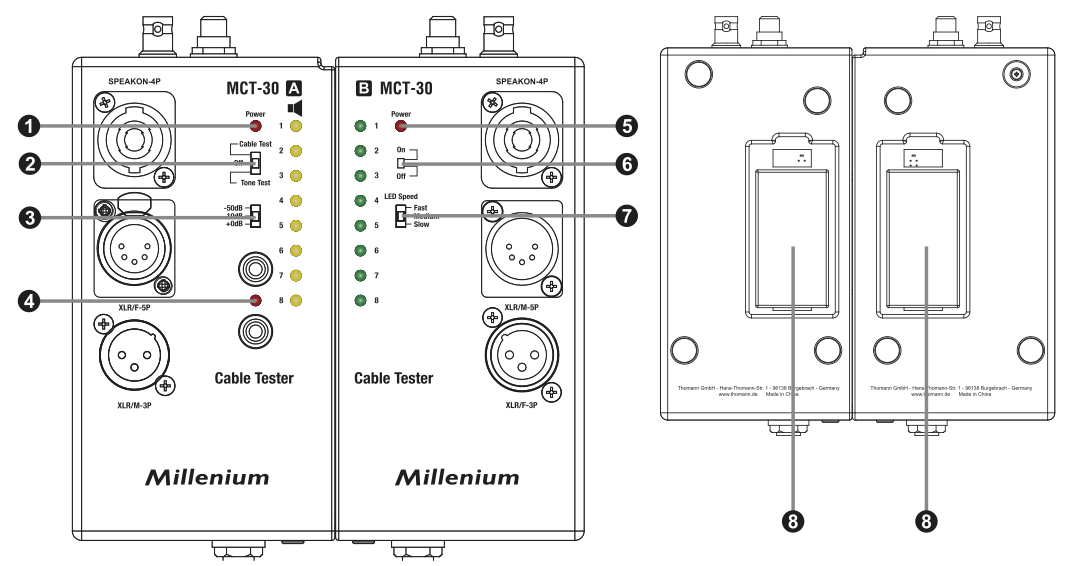

Operation Elements
- Device A: Pilot light / Power indicator
- Device A: Turns the device on in cable or sound test mode, or off
- Device A: Switch for adjusting the output level at pins 2/3/4 to –50 dB, –10 dB or +0 dB at 1 kHz signal
- Device A: Sound and continuity test ports for banana plugs. When connected, the LED lights up and a signal sounds
- Device B: Pilot light / Power indicator
- Device B: Turns the device on and off
- Device B: Switch for setting the test speed: FAST = test interval 0.5 s, MEDIUM = test interval 1.0 s, SLOW = test interval 1.5 s
- Device A+B: 9 V battery compartment
