D18 Art & Tech Show 16-Mar-2023 Setup
Plan

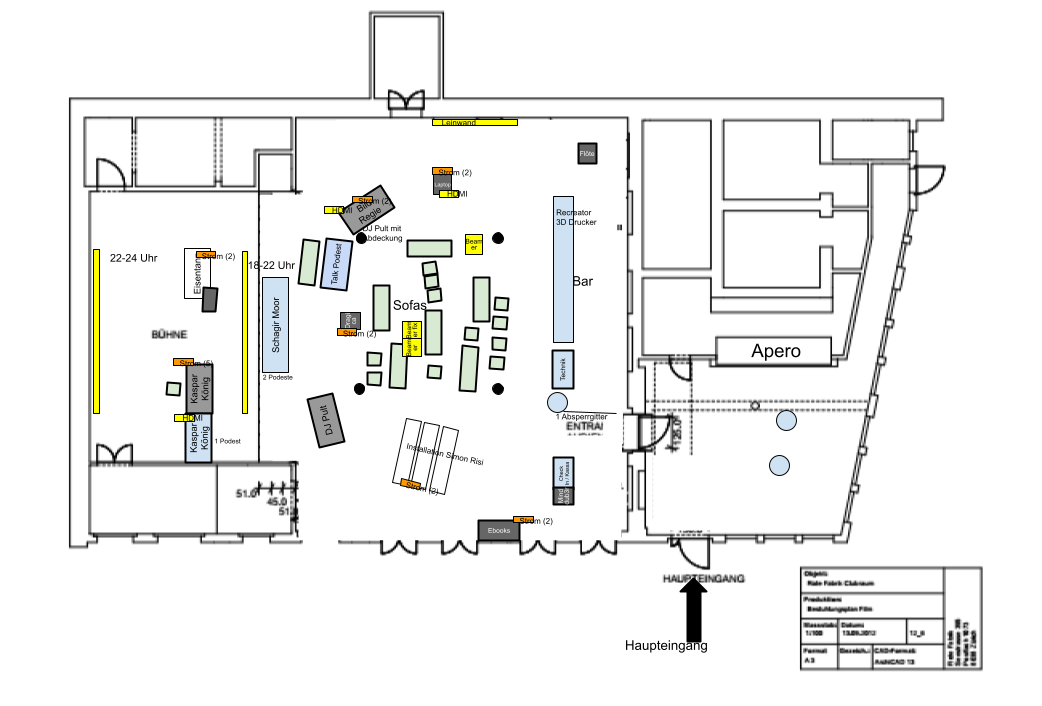

Raum Layout

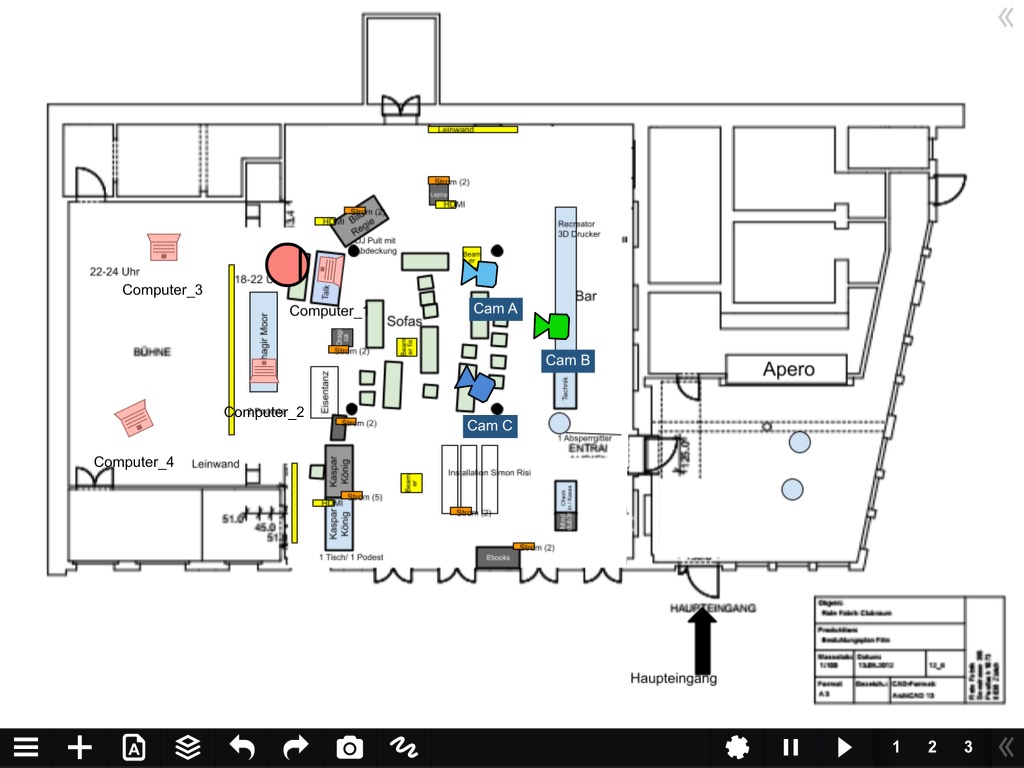

Shot Scene

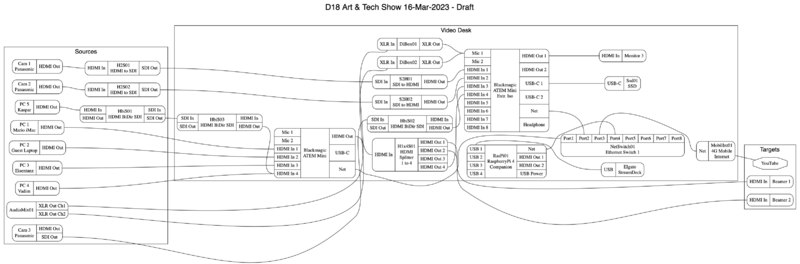

Wire Diagram
Graph Source-Code: 20230316_D18_Art_Tech_Show_WireDiagram.dot
graph arttech3 {
fontname="Helvetica" fontsize=8 rankdir="LR" graph [fontname="Helvetica" fontsize=24 labelloc=t label="D18 Art & Tech Show 16-Mar-2023 - Draft\n\n" splines=splines overlap=false] ratio = auto
subgraph cluster01 {
label = "Sources" fontsize=18;
Pc01 [shape=Mrecord, label="{PC 1\nMario iMac|<HdmiOut>HDMI Out}"];
Pc02 [shape=Mrecord, label="{PC 2\nGuest Laptop|<HdmiOut>HDMI Out}"];
Pc03 [shape=Mrecord, label="{PC 3\nEisentanz|<HdmiOut>HDMI Out}"];
Pc04 [shape=Mrecord, label="{PC 4\nVadim|<HdmiOut>HDMI Out}"];
Pc05 [shape=Mrecord, label="{PC 5\nKaspar|<HdmiOut>HDMI Out}"];
Cam01 [shape=Mrecord, label="{Cam 1\nPanasonic|<HdmiOut>HDMI Out}"];
H2S01 [shape=Mrecord, label="{{<HdmiIn>HDMI In}|{H2S01\nHDMI to SDI}|{<SdiOut>SDI Out}}"];
Cam02 [shape=Mrecord, label="{Cam 2\nPanasonic|<HdmiOut>HDMI Out}"];
H2S02 [shape=Mrecord, label="{{<HdmiIn>HDMI In}|{H2S02\nHDMI to SDI}|{<SdiOut>SDI Out}}"];
Cam03 [shape=Mrecord, label="{Cam 3\nPanasonic|{<HdmiOut>HDMI Out|<SdiOut>SDI Out}}"];
AudioMix01 [shape=Mrecord, label="{AudioMix01|{<XlrOut1>XLR Out Ch1|<XlrOut2>XLR Out Ch2}}"];
HbiS01 [shape=Mrecord, label="{{<HdmiIn>HDMI In|<HdmiOut>HDMI Out}|{HbiS01\nHDMI BiDir SDI}|{<SdiIn>SDI In|<SdiOut>SDI Out}}"];
}
subgraph cluster02 {
label = "Video Desk" fontsize=18;
DiBox01 [shape=Mrecord, label="{<XlrIn>XLR In|DiBox01|<XlrOut>XLR Out}"];
DiBox02 [shape=Mrecord, label="{<XlrIn>XLR In|DiBox02|<XlrOut>XLR Out}"];
BMDAM01 [shape=Mrecord, label="{{<Mic1>Mic 1| <Mic2>Mic 2|<HdmiIn1>HDMI In 1|<HdmiIn2>HDMI In 2|<HdmiIn3>HDMI In 3|<HdmiIn4>HDMI In 4}|{Blackmagic\nATEM Mini}|{<HdmiOut>HDMI Out|<USB>USB-C|<Net>Net}}"];
BMDAMEI01 [shape=Mrecord, label="{{<Mic1>Mic 1| <Mic2>Mic 2|<HdmiIn1>HDMI In 1|<HdmiIn2>HDMI In 2|<HdmiIn3>HDMI In 3|<HdmiIn4>HDMI In 4|<HdmiIn5>HDMI In 5|<HdmiIn6>HDMI In 6|<HdmiIn7>HDMI In 7|<HdmiIn8>HDMI In 8}|Blackmagic\nATEM Mini\nExtr. Iso|{<HdmiOut1>HDMI Out 1|<HdmiOut2>HDMI Out 2|<USB1>USB-C 1|<USB2>USB-C 2|<Net>Net|<Headphone>Headphone}}"];
H1x4S01 [shape=Mrecord, label="{{<HdmiIn>HDMI In}|H1x4S01\nHDMI\nSplitter\n1 to 4|{<HdmiOut1>HDMI Out 1|<HdmiOut2>HDMI Out 2|<HdmiOut3>HDMI Out 3|<HdmiOut4>HDMI Out 4}}"];
S2H01 [shape=Mrecord, label="{{<SdiIn>SDI In}|{S2H01\nSDI to HDMI}|{<HdmiOut>HDMI Out}}"];
S2H02 [shape=Mrecord, label="{{<SdiIn>SDI In}|{S2H02\nSDI to HDMI}|{<HdmiOut>HDMI Out}}"];
HbiS02 [shape=Mrecord, label="{{<SdiIn>SDI In|<SdiOut>SDI Out}|{HbiS02\nHDMI BiDir SDI}|{<HdmiIn>HDMI In|<HdmiOut>HDMI Out}}"];
HbiS03 [shape=Mrecord, label="{{<SdiIn>SDI In|<SdiOut>SDI Out}|{HbiS03\nHDMI BiDir SDI}|{<HdmiIn>HDMI In|<HdmiOut>HDMI Out}}"];
Moni01 [shape=Mrecord, label="{<HdmiIn>HDMI In|Monitor 3}"];
Ssd01 [shape=Mrecord, label="{<USB>USB-C|Ssd01\nSSD}"];
MobilInt01 [shape=Mrecord, label="{<Net>Net|MobilInt01\n4G Mobile\nInternet}"];
RasPi01 [shape=Mrecord, label="{{<Usb1>USB 1|<Usb2>USB 2|<Usb3>USB 3|<Usb4>USB 4}|RasPi01\nRaspberryPi 4\nCompanion|{<Net>Net|<HdmiOut1>HDMI Out 1|<HdmiOut2>HDMI Out 2|<UsbPwr>USB Power}}"];
StrDeck01 [shape=Mrecord, label="{<Usb>USB|Elgato\nStreamDeck}"];
NetSwitch01 [shape=Mrecord, label="{<Port1>Port1|<Port2>Port2|<Port3>Port3|<Port4>Port4|<Port5>Port5|<Port6>Port6|<Port7>Port7|<Port8>Port8}|NetSwitch01\nEthernet Switch 1"]
}
subgraph cluster03 {
label = "Targets" fontsize=18;
Beam01 [shape=Mrecord, label="{<HdmiIn>HDMI In|Beamer 1}"];
Beam02 [shape=Mrecord, label="{<HdmiIn>HDMI In|Beamer 2}"];
YouTube [shape=octagon, Label="YouTube\chkummer"]
}
#Connections Pc01:HdmiOut -- BMDAM01:HdmiIn1 Pc02:HdmiOut -- BMDAM01:HdmiIn2 Pc03:HdmiOut -- BMDAM01:HdmiIn3 Pc04:HdmiOut -- BMDAM01:HdmiIn4 Pc05:HdmiOut -- HbiS01:HdmiIn HbiS01:SdiOut -- HbiS03:SdiIn HbiS03:HdmiOut -- BMDAM01:HdmiIn4 Cam01:HdmiOut -- H2S01:HdmiIn H2S01:SdiOut -- S2H01:SdiIn S2H01:HdmiOut -- BMDAMEI01:HdmiIn1 Cam02:HdmiOut -- H2S02:HdmiIn H2S02:SdiOut -- S2H02:SdiIn S2H02:HdmiOut -- BMDAMEI01:HdmiIn2 Cam03:SdiOut -- HbiS02:SdiIn HbiS02:HdmiOut -- BMDAMEI01:HdmiIn3 RasPi01:Net -- NetSwitch01:Port4 RasPi01:Usb1 -- StrDeck01:Usb AudioMix01:XlrOut1 -- DiBox01:XlrIn AudioMix01:XlrOut2 -- DiBox02:XlrIn DiBox01:XlrOut -- BMDAMEI01:Mic1 DiBox02:XlrOut -- BMDAMEI01:Mic1 BMDAM01:HdmiOut -- H1x4S01:HdmiIn BMDAM01:Net -- NetSwitch01:Port1 H1x4S01:HdmiOut1 -- Beam01:HdmiIn H1x4S01:HdmiOut2 -- Beam02:HdmiIn H1x4S01:HdmiOut4 -- BMDAMEI01:HdmiIn4 BMDAMEI01:HdmiOut1 -- Moni01:HdmiIn BMDAMEI01:USB1 -- Ssd01:USB BMDAMEI01:Net -- NetSwitch01:Port2 NetSwitch01:Port3 -- MobilInt01:Net MobilInt01 -- YouTube
}
Parts List
| Device | Area | Description | Owner |
|---|---|---|---|
| Pc01 | Sources | Mario's iMac | Dock18 |
| Pc02 | Sources | Guest Presenter's Laptop | Guest |
| Pc03 | Sources | PC Eisentanz | Eistanz |
| Pc04 | Sources | PC Vadim | Vadim |
| Pc05 | Sources | PC Kaspar | Kaspar |
| Cam01 | Sources | Panasonic Camcorder | Dock18 |
| Cam02 | Sources | Panasonic Camcorder | Dock18 |
| Cam03 | Sources | Panasonic Video Camera | Dodi |
| HbiS01 | Sources | Blackmagic Micro Converter BiDirectional SDI/HDMI 3G | Chkummer |
| H2S01 | Sources | Blackmagic Micro Converter HDMI to SDI 3G | Chkummer |
| H2S02 | Sources | Blackmagic Micro Converter HDMI to SDI 3G | Chkummer |
| AudioMix01 | Sources | Audio Mixer (incl. Mics and PA) | Rote Fabrik |
| Beamer01 | Targets | Video Beamer (Presentation) | Rote Fabrik |
| Beamer02 | Targets | Video Beamer (Stage) | Rote Fabrik |
| DiBox01 | Video Desk | IMG Stageline FGA-202 DI Box | Chkummer |
| H1x4S01 | Video Desk | Navceker HDMI Splitter 1x4 | Chkummer |
| S2H01 | Video Desk | Blackmagic Micro Converter SDI to HDMI 3G | Chkummer |
| S2H02 | Video Desk | Blackmagic Micro Converter SDI to HDMI 3G | Chkummer |
| HbiS02 | Video Desk | Blackmagic Micro Converter BiDirectional SDI/HDMI 3G | Chkummer |
| HbiS03 | Video Desk | Blackmagic Micro Converter BiDirectional SDI/HDMI 3G | Chkummer |
| BMDAM01 | Video Desk | Blackmagic ATEM Mini Pro ISO | Chkummer |
| BMDAMEI01 | Video Desk | Blackmagic ATEM Mini Extreme ISO | Chkummer |
| Moni01 | Video Desk | Seetec K280-9HSD-CO | Chkummer |
| Ssd01 | Video Desk | SSD | Chkummer |
| RasPi01 | Video Desk | Raspberry Pi 4 running Bitfocus Companion Pi | Chkummer |
| StrDeck01 | Video Desk | Elgato Stream Deck | Chkummer |
| NetSwitch01 | VideoDesk | Netgear GS108v4 8 Port Ethernet Switch | Chkummer |
| MobilInt01 | Video Desk | Netgear Nighthawk M1 4G LTE Mobile Router MR1100 | Chkummer |
| - | Video Desk | Ubiquiti AmpliFi Instant | Chkummer |
