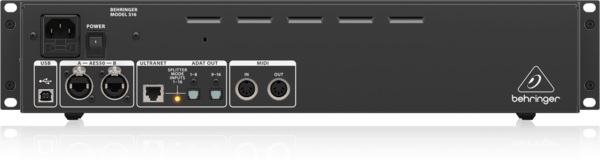

Behringer S16

I/O Box with 16 Remote-Controllable Midas Preamps, 8 Outputs and AES50 Networking featuring Klark Teknik SuperMAC Technology. Can be connected to Behringer X32 Compact Audio Mixer

Graph Diagramm

Graph Source-Code: bs16.dot

AudioStageBox01 [shape=Mrecord, label="{{<XlrIn01>XLR In 1|<XlrIn02>XLR In 2|<XlrIn03>XLR In 3|<XlrIn04>XLR In 4|<XlrIn05>XLR In 5|<XlrIn06>XLR In 6|<XlrIn07>XLR In 7|<XlrIn08>XLR In 8|<XlrIn09>XLR In 9|<XlrIn10>XLR In 10|<XlrIn11>XLR In 11|<XlrIn12>XLR In 12|<XlrIn13>XLR In 13|<XlrIn14>XLR In 14|<XlrIn15>XLR In 15|<XlrIn16>XLR In 16|<MidiIn>MIDI In}|{Behringer S16}|{<XlrOut01>XLR Out 1|<XlrOut02>XLR Out 2|<XlrOut03>XLR Out 3|<XlrOut04>XLR Out 4|<XlrOut05>XLR Out 5|<XlrOut06>XLR Out 6|<XlrOut07>XLR Out 7|<XlrOut08>XLR Out 8|<Phones>Phone|<MidiOut>MIDI Out|<Aes50A>AES50 A|<Aes50B>AES50 B|<Usb>USB|<UltraNet>Ultranet}}"];

Links

• Product Page
• Quick Start Guide
• Download Page (including Software and Manuals - just select 'S16' within the 'Product' selector)
