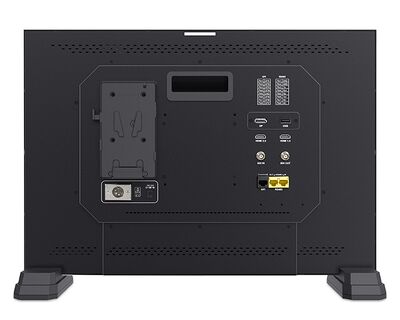

[[File:seetec_lut215_back.jpeg|400px]] | [[File:seetec_lut215_back.jpeg|400px]] | ||
| + | [[File:seetec_carry_on_suitcase.png]] | ||
With Carry On Suitcase | With Carry On Suitcase | ||
Revision as of 23:53, 28 January 2025
With Carry On Suitcase
Specs
| Display Spec | Model | LUT215 |
|---|---|---|
| Screen Size | 21.5" IPS | |
| Color Depth | 16.7M | |
| Resolution | 1920×1080 pixels | |
| Dot Pitch | 248.25x248.25 um | |
| Aspect Ratio | 16:9 | |
| Brightness | 250cd/m² | |
| Contrast Ratio | 3000:1 | |
| Backlight | LED | |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) | |
| Input | 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI2.0 | |
| 1 X HDMI | HDMI1.4 | |
| 1 X RS485 | RS485 | |
| 1 X GPI | GPI | |
| 1 X DP | DP (DisplayPort) | |
| 1 X USB | USB | |
| Output | 1 X BNC | 3G-SDI |
| 1 X RS485 | RS485 | |
| Audio | Audio Out | 3.5mm Stereo Headphone |
| General | Input Voltage | DC9-24V |
| Power Consumption | ≤27W | |
| Working Temperature | -10°C~50°C | |
| Storage Temperature | -20°C~60°C | |
| Unit Size | 780L×470H×250D (mm) (W/ Suitcase) | |
| Unit Weight | 21.7kg (with Suitcase) |
SDI Support Format:
- 480i/576i
- 720p(60/59.94/50/30/29/25/24/23.98)
- 1080i(60/59.94/50)
- 1080p(60/59.94/50/30/29.97/25/24/23.98)
HDMI2.0/DP Support Format:
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 3840×2160p (60/50/30/25/24)
- 4096×2160p (60/50/30/25/24)
HDMI1.4 Support Format
- 480i/576i/480p/576p
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 3840×2160p (30/25/24)
- 4096×2160p (24)
Advanced Features:
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB (Store up to 16)
- Support GPI control
- Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol
- Support OSD TALLY and LED TALLY
- Support 16-ch embedded audio meters display
- Histogram
- Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
- False Colors
- Over Exposure (Exposure IRE Adjustable)
- Timecode Display (LTC & VITC)
- Picture in Picture (Adjustable Horizontal or Vertical Wipe Position)
- Over Scan
- Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
- Pixel to Pixel
- Center Marker
- Safety Marker (80%, 85%, 90%, 93%, 96%)
- Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 1:1)
- Marker Color (Red, Green, Blue, Black, White)
- Aspect Ratio (Auto, 4:3, 16:9, Full Screen)
- Check Field (Colorless, Red, Green, Blue)
- Image Freeze
- Window Rotation (90°, 180°, 270°, H-Mirror, V-Mirror)
- Adjustable Gamma Selection (1.8, 2, 2.2, 2.4, 2.6, SRGB, ITUBT.1886)
- Selectable Color Temperature Presets
